Brand Name :
ShuangYi
Model Number :
SATA 7 +15P Fx5 TO SATA 7P Fx5 +PH4.2x20P.HSG
Certification :
ROHS, HF, ISO 9001, ISO 14001, IATF 16959
Place of Origin :
China
MOQ :
1000
Price :
$0.79-0.97 PCS FOB
Payment Terms :
T/T
Supply Ability :
500000 pcs per month
Delivery Time :
8-15 working days
Packaging Details :
Tape and Reel, 1500 per case, 10KG
Product Type :

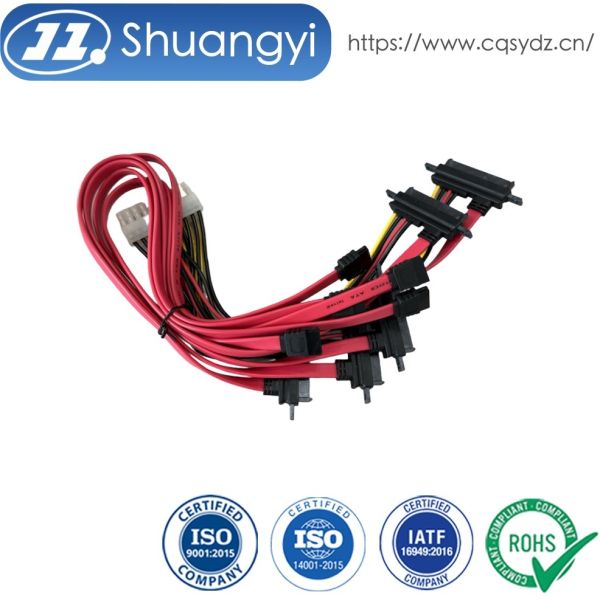

SATA data and power connector cable / multi-branch harness
Function :
Board-level electrical / electronic signal connection
Connector style :
8-pin power connector, latch design, keyed housing
Mounting type :
SMT to PCB with mechanical pegs
Housing material :
High-temperature thermoplastic, UL94V-0
Contact material :
Copper alloy terminals
Contact plating :
Tin plated, selective gold plating available
Rated current :
Up to 1.5 A per contact (reference, application dependent)
Rated voltage :
Up to 30 V AC / DC (low-voltage signal use)
Insulation resistance :
≥ 1,000 MΩ at 500 V DC
Contact resistance :
≤ 30 mΩ (initial)
Dielectric strength :
300 V AC / minute
Mechanical durability :
≥ 500 mating cycles
Operating temperature :
−20 °C to +105 °C
PCB thickness reference :
Around 1.0 mm board edge design
RoHS/REACH :
Halogen-free, RoHS-compliant materials
Customization options :
Gold thickness, housing color, packaging, harness assembly
Environmental compliance :
RoHS / HF / REACH compliant
