SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable

ShuangYi Precision Electronics Co., LTD
Contact Now

SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable

Brand Name : ShuangYi

Model Number : SATA-C22F-71N16A2-000R

Certification : ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Place of Origin : China

MOQ : 1000

Price : $0.23-0.35 PCS FOB

Payment Terms : T/T

Supply Ability : 500000 pcs per month

Delivery Time : 8-15 working days

Packaging Details : Tape and Reel, 1500 per case, 10KG

Product Type : Board-to-board SATA edge connector, male, right-angle SMT

Function : Board-level electrical / electronic signal connection

Pin count : 22 pins

Mounting type : SMT to PCB with mechanical pegs

Housing material : High-temperature thermoplastic, UL94V-0 flame rating

Contact material : Copper alloy, high conductivity

Contact plating : Gold over nickel on mating area, tin over nickel on solder tails

Rated current : Up to 1.5 A per contact (reference, application dependent)

Rated voltage : Up to 30 V AC / DC (low-voltage signal use)

Insulation resistance : ≥ 1,000 MΩ at 500 V DC

Contact resistance : ≤ 30 mΩ (initial)

Dielectric strength : 300 V AC / minute

Mechanical durability : ≥ 500 mating cycles

Operating temperature : -20 °C to +85 °C (higher range customizable)

PCB thickness reference : Around 1.0 mm board edge design

RoHS/REACH : Halogen-free, RoHS-compliant materials

Customization options : Gold thickness, housing color, packaging, harness assembly

Environmental compliance : RoHS / HF / REACH compliant

Contact Now

Product Description

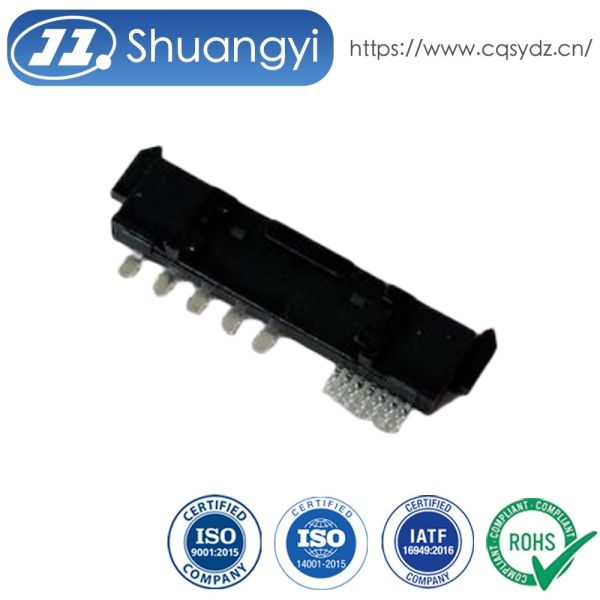

This compact board-to-board SATA edge connector is designed for high-density signal and low-voltage power transmission in storage and embedded systems. The 1.27 mm pitch and 22-pin layout follow common SATA interface practices, enabling reliable mating with matching receptacles on HDD, SSD, or controller boards.

Copper-alloy contacts with gold-over-nickel plating provide low contact resistance, corrosion resistance, and long-term signal integrity. The right-angle SMT structure and gull-wing solder legs allow automated reflow soldering and compact layout on densely populated PCBs. The high-temperature, UL94V-0 housing ensures mechanical stability during reflow and long-term operation in demanding environments.

Customization is available for pin count, plating thickness, keying features, and packaging (tape-and-reel or tray) to match different server, automotive, or industrial PCB designs.

SATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD CableSATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD CableSATA 22-Pin 1.27mm Dual Row Female PCB Connector, Right Angle SMT Power Signal Terminals Connector, Customization for Server Storage HDD SSD Cable

Connector type Board-to-board SATA edge connector, male, right-angle SMT
Pitch 1.27 mm
Number of positions 22 pins (signal + power options)
Mounting style Surface-mount on PCB, gull-wing terminals
Contact material Copper alloy, high conductivity
Contact plating Gold over nickel on contact area, tin on solder tails
Housing material High-temperature thermoplastic, UL94V-0 flame rating
Rated current Up to 1.5 A per signal pin (higher on power pins depending on design)
Rated voltage Up to 30 V AC/DC (low-voltage signal and power lines)
Operating temperature -40 °C to +105 °C (typical for SATA storage environments)
PCB suitability Standard FR-4 PCB, recommended thickness around 1.6 mm
Compliance RoHS, halogen-free options available on request

Applications

SATA-based HDD and SSD storage devices

Server and data-center backplanes, RAID cards, NAS systems

Industrial PCs, embedded controllers, PLC and motion-control units

Communication equipment, routers, and network appliances requiring compact storage interfaces

Test fixtures and adapter boards for drive evaluation and mass-production testing

Precautions

Confirm the pitch, pin count, and footprint against your PCB layout before mass production.

Keep total current and voltage within the specified ratings to avoid overheating and contact damage.

During handling and assembly, avoid bending or twisting the SMT terminals; use proper pick-and-place tooling.

Follow a suitable reflow soldering profile for high-temperature thermoplastic housings to prevent warpage.

Ensure correct mating orientation with the corresponding SATA connector to avoid mis-insertion and contact wear.
