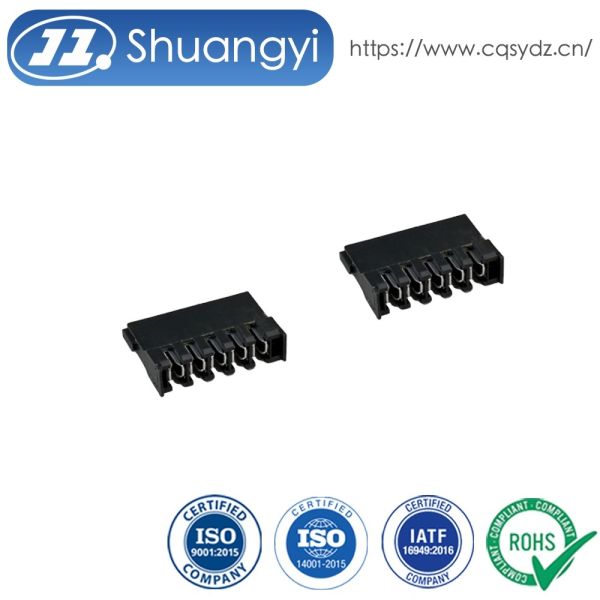

2.54mm pitch 6-pin IDC female terminal connector, wire-to-board electrical signal connector for PCB customization, automotive electronics, server

Name: 254mm pitch 6pin IDC female terminal connector wiretoboard electrical signal connector for PCB customization automotive electronics server
Brand: ShuangYi
Price: 0.06 USD

2.54mm pitch 6-pin IDC female terminal connector, wire-to-board electrical signal connector for PCB customization, automotive electronics, server Manufactures

Brand Name : ShuangYi

Model Number : SATA-C15F-X1X2A5-000R

Certification : ROHS, HF, ISO 9001, ISO 14001, IATF 16959

Place of Origin : China

MOQ : 1000

Price : $0.06-0.09 PCS FOB

Payment Terms : T/T

Supply Ability : 500000 pcs per month

Delivery Time : 8-15 working days

Packaging Details : Tape and Reel, 1500 per case, 10KG

Product Type : SATA 15-pin female board connector

Function : Board-level electrical / electronic signal connection

Pin count : 15 pins

Mounting type : SMT to PCB with mechanical pegs

Housing material : High-temperature thermoplastic, UL94V-0

Contact material : Copper alloy, high conductivity

Contact plating : Gold over nickel on mating area, tin over nickel on solder tails

Rated current : Up to 1.5 A per contact (reference, application dependent)

Rated voltage : Up to 30 V AC / DC (low-voltage signal use)

Insulation resistance : ≥ 1,000 MΩ at 500 V DC

Contact resistance : ≤ 30 mΩ (initial)

Dielectric strength : 300 V AC / minute

Mechanical durability : ≥ 500 mating cycles

Operating temperature : −40 °C to +85 °C

PCB thickness reference : Around 1.0 mm board edge design

RoHS/REACH : Halogen-free, RoHS-compliant materials

Customization options : Gold thickness, housing color, packaging, harness assembly

Environmental compliance : RoHS / HF / REACH compliant

Contact Now

Product Description

This 2.54 mm pitch 6-pin IDC female connector is designed for compact wire-to-board terminations where fast assembly and reliable electrical contact are required. Insulation displacement contacts pierce the wire insulation during termination, providing stable contact resistance and minimizing manual stripping operations. High-temperature, flame-retardant thermoplastic housing and corrosion-resistant plated contacts ensure long-term performance in demanding electrical and electronic systems.

Multiple pin counts, wire gauges and plating options can be customized to match specific PCB layouts, harness designs and electrical ratings. The connector structure offers consistent contact pressure and good retention on the board, supporting repeated mating with compatible headers while maintaining signal integrity and power delivery.

2.54mm pitch 6-pin IDC female terminal connector, wire-to-board electrical signal connector for PCB customization, automotive electronics, server

Connector type	IDC female wire-to-board terminal connector
Pitch	2.54 mm
Number of positions	6 pins (other pin counts customizable)
Contact plating	Tin or selective gold over nickel, copper alloy contacts
Housing material	High-temperature thermoplastic, UL94-V0, black
Rated current	Up to 3 A per contact (application dependent)
Rated voltage	250 V AC/DC
Operating temperature	−40 °C to +105 °C
Termination style	Insulation displacement (piercing type) to stranded wire
Mounting	Vertical through-hole to PCB
Compliance	RoHS / HF / REACH compliant

Applications

Power and signal harnesses in automotive electronics, body control and lighting modules

Control boards in appliances, industrial controllers and instrumentation equipment

Low-voltage power distribution and auxiliary signal lines in server, storage and communication devices

Customized PCB assemblies requiring quick IDC termination for multi-core cables

Precautions

Select wire gauge, current and voltage ratings in line with the connector specification and system safety requirements.

Ensure correct alignment with the mating header and apply uniform press force during IDC termination to avoid incomplete piercing or contact deformation.

Avoid exceeding the recommended operating temperature range or using the connector in environments with aggressive chemicals without prior validation.

Periodically inspect high-vibration or high-cycle installations to confirm that contacts and housings remain secure and free of corrosion or mechanical damage.
